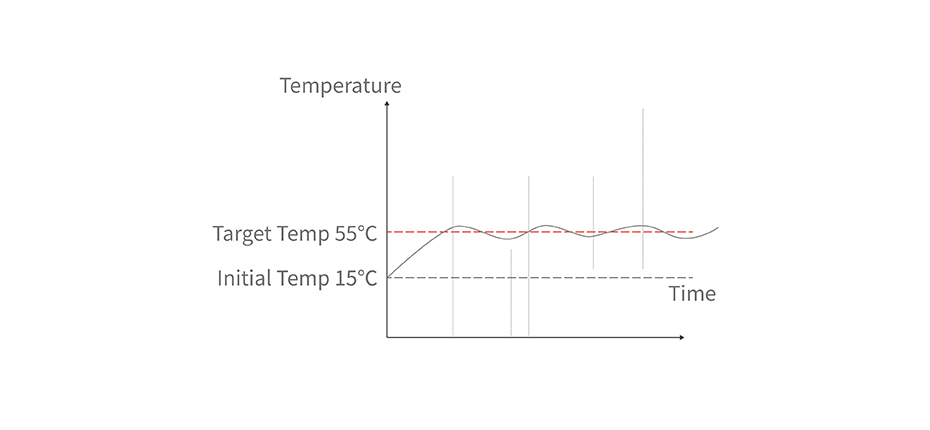

The Smad All in One Hot Water Heat Pump can perform step-less frequency conversion in a wide range of 30Hz-70Hz, thereby adapts to complex and changeable environmental conditions and accurately controls the water temperature, to meet the diﬀerent comfort requirements.

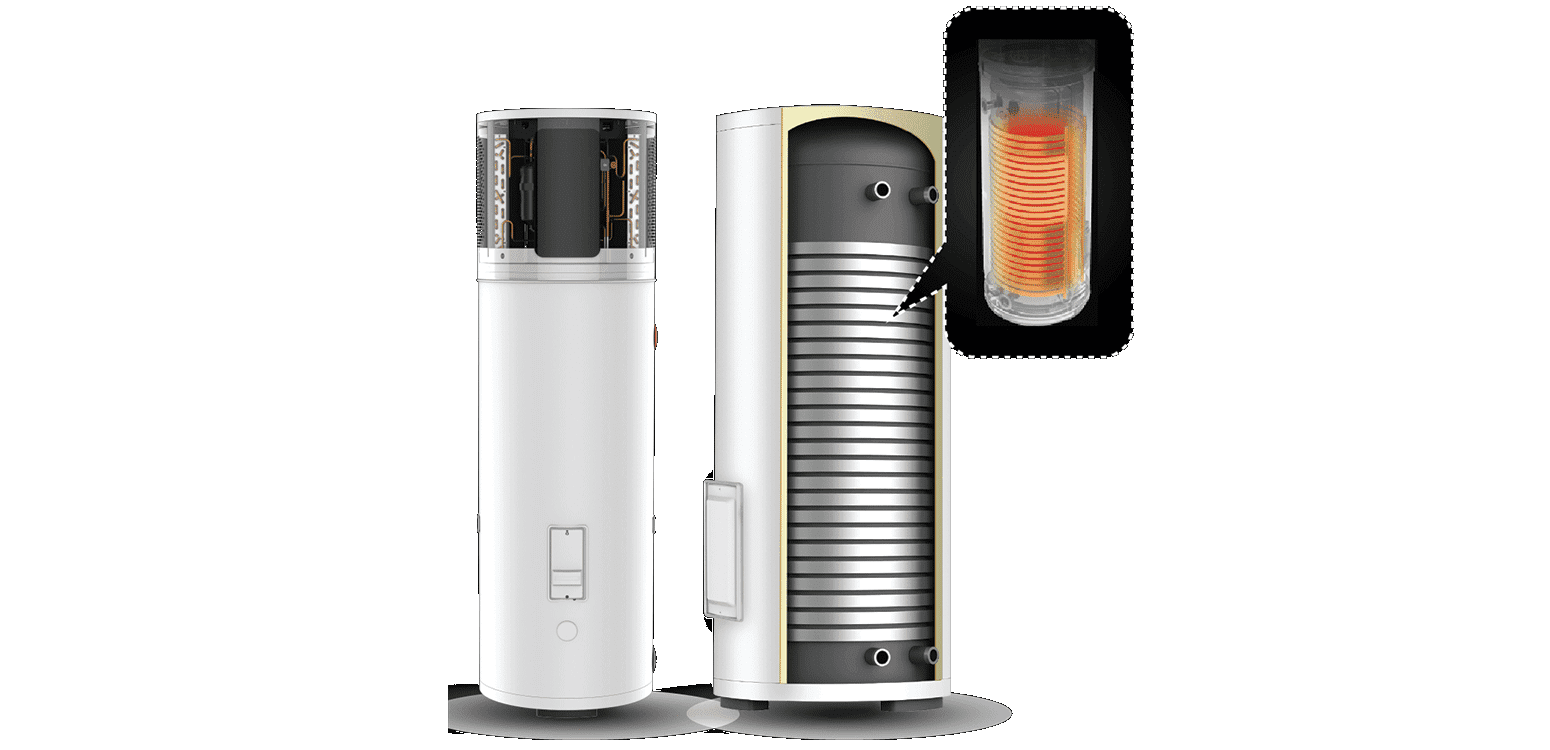

The high-density micro-channel heat coils with multi-flow allow the refrigerant and the surface of the enamel water tank to have a large-area heat exchange, which highly improves the heat transfer efficiency.
During water heating, the all in one series can automatically calculate and analyze its current operating conditions, then adjust the power input to achieve an optimal COP of up to 4.2. The excellent energy-saving effect makes it stand out from the other water heaters.

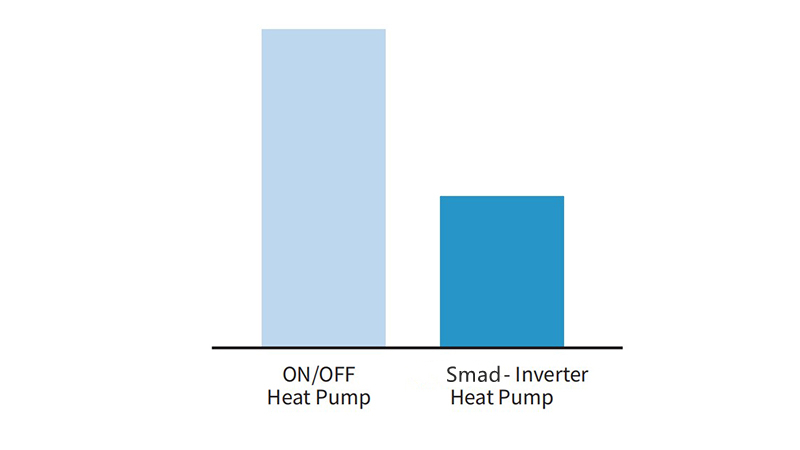

Compare to the ON/OFF heaters, the inverter heater can save more than 50% power in the daily running. Consumers can enjoy fast water heating and energy saving at the same time.

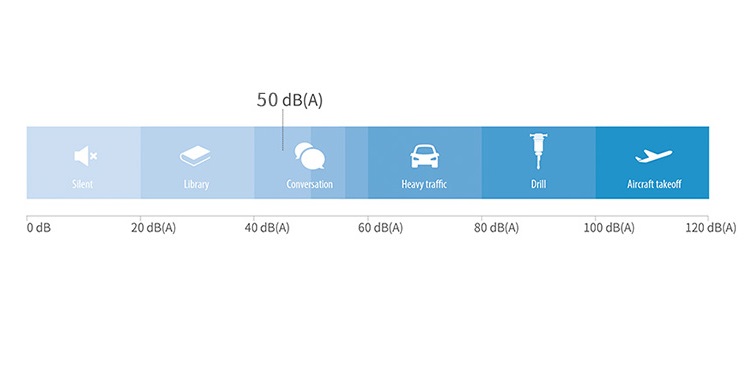

Smad R&D Department has optimized the noise control solution time and again by conducting countless noise experiments on the all in one series, whose noise is as low as 48 dB(A), ensuring a peaceful home environment.
|Model No.||DCS-120CSE1; DCS-150CSE1|
|Water tank volume(L)||120 / 150L|
|Working temperature range||-7～43 ℃|
|Heating Capacity(Air 20℃/15℃, Water Temperature from 15℃ to 55℃)||2.5 kW|
|Power Input(kW)||0.6 kW|
|Max Power Input(kW)||3 kW|
|Noise level 1m dB(A)||48 dB(A)|
|Product Dimensions( L×D×H )||500×500×1550; 500×500×1670 mm|
|Packed Dimensions ( L×D×H )||640×640×1720; 640×640×1840 mm|
|Net Weight||89 / 92 Kg|
